Used Chevy Colorado 2006, 2007, 2008

Chevy Colorado 2008 model pickup

Chevy Colorado has gone through three changes. Chevy Colorado was first introduced in Thailand in 2004 and was essentially a rebadged Isuzu Dmax. The first model change was in 2008 and continued in 2008, 2009, 2010 and 2011. The second change was in 2012 and continued 2012, 2013, 2014 and 2015. Third change 2016 Major change model has been released in July 2015.

Used 2006, 2007, 2008 Chevy Colorado is available at Jim Autos Thailand as are 2009, 2010, 2011, 2012, 2013, 2014 and 2015 used Chevy Colorado pickup trucks. New 2016 Chevy Colorado pickups are also available.

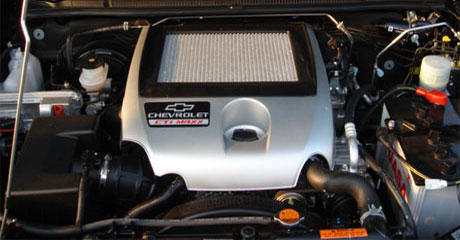

Here are some Images (Pics) of the 2008 model Chevy Colorado.

Since it is the accessories that turn a pickup into a great ride, he is a look after accessories had been installed on the above vehicles:

Chevrolet Colorado Intro

Jim Autos is Thailand’s largest and oldest exporter of Chevy Colorado. Buy your next Chevy Colorado, Toyota Vigo, Mitsubishi Triton or Ford Ranger at Jim by emailing us today at [email protected].

Chevrolet Colorado is a proud successor to the legendary S-series trucks that redefined the small-truck segment by grafting the handling and performance characteristics of a midsize sedan (MacPherson IFS, V-6 power) onto a compact pickup platform.

Bigger, bolder and more refined than any compact Chevy truck in years, the Colorado is an all-new pickup from Chevrolet. Slightly larger than the S-10 truck that it replaces, the Colorado features all-new engines, additional class-exclusive features and a tough new look that makes it instantly recognizable as a Chevrolet pickup. Built on a stout ladder frame chassis, the Colorado offers three body styles, two- and four-wheel drive and a choice of two new Vortec inline engines. Derived directly from the 4.2-liter straight six found in the TrailBlazer SUV, the Colorado’s all-aluminum four- and five-cylinder power plants are the most technologically advanced engines ever offered in a compact Chevrolet truck. Both engines use dual-overhead camshafts, four valves per cylinder and electronic throttle control to deliver a broad range of peak torque that extends from 1,200 to 5,600 rpm on the standard 2.8-liter four-cylinder, and from 1,400 to 5,200 rpm on the optional 3.5-liter five-cylinder. Both engines offer a choice of a four-speed automatic or a new five-speed manual.

The suspension consists of a solid rear axle with leaf springs and an independent coil spring front suspension. An off-road package swaps out the coil springs for torsion bars, while a sport package adds an anti-sway bar in back. Off-road enthusiasts will also appreciate the Colorado’s dual-speed push-button transfer case as well as the optional locking rear differential. Since the majority of compact truck buyers purchase their vehicles for personal use, the Colorado was given a more refined and feature-laden cabin than the previous S-10. The overall design is simple, with rotary dials for the climate control system and a large radio faceplate for easy control of the XM Satellite Radio-compatible audio system. Materials quality still isn’t great, but build quality has improved considerably, so expect fewer loose trim pieces and smaller panel gaps.

Extended cab models feature reverse-opening rear doors on both sides for easier access to the backseats, while the large crew cab models offer a 60/40-split folding rear seat that can seat three adults, according to Chevrolet. Regardless of whether the cabs are comfortable or not, segment-first side curtain airbags are available that provide head protection in the event of a side impact or rollover accident. Standard antilock brakes and optional traction control on 2WD models further contribute to the Colorado’s complement of safety features. All things considered, the Colorado offers all the necessary ingredients to satisfy the majority of compact truck buyers. Its range of engines provides both efficiency and power, and with three body styles to choose from in both two- and four-wheel drive, finding a perfect fit shouldn’t be too difficult. Although its old-tech S-10 predecessor has kept Chevrolet off the minds of many compact truck buyers as of late, the Colorado has the hardware to make Chevrolet a legitimate competitor in this segment once again.

Colorado has intelligent power plants that perform the way you need them to, including an available Vortec 3500 I-5 engine that generates the horsepower of a V6 with the fuel efficiency of a four-cylinder.



Specifications

Chevrolet Colorado S-CAB

Features 2WD Single Cab 2.5 GL1 Interior Cluster with techometer • Control switch at door panel – Airconditioning with heated glass system • Digital milage • Central lock  – Power window  – Radio with cassette • Speaker 2 Seat and door panel material Vinyl Power steering with safety collapse system • Tilt steering – Leather steering wheel and gear knob – Intermittent wiper • Dome lamp • Power outlet – Cigarette package • Middle console with 2 cupholders • Overhead console include. sunglasses pocket/map lamp – Exterior Light indicator at side mirror – Front grill • Bumper body colour • Fog lamp – Housing side mirror Black Electric adjustable side mirrors  – Door handle Black Door handle at tailgate  – Rear bumper  – Over fender body colour – Steel wheel 15″ Alloy wheel – Tire size 215/70 R15 Safety Hologen headlights • Safety front windshield • Side beam protector • Skid plate – Sunband – Front dual airbags (driver & passenger) – Seat belt 3 points for driver & passenger • Seat belt 3 points for rear passenger – Adjustable seat belt (height – low) • Rear defogger – ABS, EBD include. G-sensor – Limited slip – Remote control include. Alarm system – Third brake light – Child door lock – Door half latch warning • Key reminder – Head lamp reminder – Selt belt warning • Tools • Immobilizer system  – Body Colour ZENITH BLUE • STERLING SILVER • IMPERIAL BLOND • FOXFIRE RED • BLACK SAPPHIRE • LIGHT PEWTER •

Chevrolet Colorado X-CAB Specs

Features EXTENDED CAB 2WD 2WD 4WD 2.5 LS 2.5 LS1 2.5 LT 3.0 LS 3.0 LT 3.0 LT1 3.0 Z71 3.0 Z71 4X4 Interior Cluster with techometer • • Silver trim • Silver trim Control switch at door panel – – Silver trim – Silver trim Airconditioning with heated glass system • • • • • • • • Digital milage • • • • • • • • Central lock  –  – •  – • • • • Power window  –  – •  – • • • • Radio with cassette • • • • • • • • Speaker 4 4 6 4 6 6 6 6 Seat and door panel material Tertis Kayak Tertis Kayak Power steering with safety collapse system • • • • • • • • Tilt steering – • • – • • • • Leather steering wheel and gear knob – – • – • • • • Intermittent wiper • • Variable intermittent wiper • Variable intermittent wiper Dome lamp • • • • • • • • Power outlet • • • • • • • • Cigarette package • • • • • • • • Middle console with 2 cupholders • • • • • • • • Overhead console include. sunglasses pocket/map lamp – – • – • • • • Exterior Light indicator at side mirror – – • – • • • • Front grill • • • • Body colour With Chrome insert With Chrome insert With Chrome insert Bumper body colour • • • • • • • • Fog lamp – – – –  –  – • • Housing side mirror Body colour Body colour Body colour Body colour Body colour With Chrome insert With Chrome insert With Chrome insert Electric adjustable side mirrors – – • – • • • • Door handle Body colour Body colour Body colour Body colour Body colour With Chrome insert With Chrome insert With Chrome insert Door handle at tailgate Body colour Body colour Body colour Body colour Body colour With Chrome insert With Chrome insert With Chrome insert Rear bumper  – – Black  – Black With Chrome insert With Chrome insert With Chrome insert Over fender body colour – – – – – – • • Steel wheel 15″ – – 15″ –  – – – Alloy wheel – 15″ 15″ – 15″ 15″ 16″ 16″ Tire size 215/70 R15 215/70 R15 215/70 R15 215/70 R15 215/70 R15 215/70 R15 245/70 R16 245/70 R16 Safety Hologen headlights • • • • • • • • Safety front windshield • • • • • • • • Side beam protector • • • • • • • • Skid plate – – – – – – • • Sunband – – • – • • • • Front dual airbags (driver & passenger) – – – – – • • • Seat belt 3 points for driver & passenger • • • • • • • • Seat belt 3 points for rear passenger – – – – – – – – Adjustable seat belt (height – low) • • • • • • • • Rear defogger – – • – • • • • ABS, EBD include. G-sensor – • • – • • • • Limited slip – – – – – – – • Remote control include. Alarm system – – – – – • • • Third brake light • • • • • • • • Child door lock  – – –  –  –  – – – Door half latch warning • • • • • • • • Key reminder • • • • • • • • Head lamp reminder • • • • • • • • Selt belt warning • • • • • • • • Tools • • • • • • • • Immobilizer system  –  – •  – • • • • Body Colour ZENITH BLUE • • • • • • • • STERLING SILVER • • • • • • • • IMPERIAL BLOND • • • • • • • • FOXFIRE RED • • • • • • • • BLACK SAPPHIRE • • • • • • • • LIGHT PEWTER • • • • • • • •



Chevrolet Colorado C-CAB

Features CREW CAB 2WD 2WD 4WD 2.5 LS 2.5 LT 3.0 LS 3.0 LT 3.0 LT1 3.0 Z71 3.0 Z71 4X4 Interior Cluster with techometer • Silver trim • Silver trim Control switch at door panel • Silver trim • Silver trim Airconditioning with heated glass system • • • • • • • Digital milage • • • • • • • Central lock  – •  – • • • • Power window  – •  – • • • • Radio with cassette • • • • • • • Speaker 4 6 4 6 6 6 6 Seat and door panel material Tertis Kayak Tertis Kayak Power steering with safety collapse system • • • • • • • Tilt steering – • – • • • • Leather steering wheel and gear knob – • – • • • • Intermittent wiper • Variable intermittent wiper • Variable intermittent wiper Dome lamp • • • • • • • Power outlet • • • • • • • Cigarette package • • • • • • • Middle console with 2 cupholders • • • • • • • Overhead console include. sunglasses pocket/map lamp – • – • • • • Exterior Light indicator at side mirror – • – • • • • Front grill • • Body colour Body colour Body colour Chrome Insert Chrome Insert Bumper body colour • • • • • • • Fog lamp – – –  –  – • • Housing side mirror Body colour Body colour Body colour Body colour Chrome Insert Chrome Insert Chrome Insert Electric adjustable side mirrors – •  – • • • • Door handle Body colour Body colour Body colour Body colour Chrome Insert Chrome Insert Chrome Insert Door handle at tailgate Body colour Body colour Body colour Body colour Chrome Insert Chrome Insert Chrome Insert Rear bumper  – สีดำ – Black Chrome Insert Chrome Insert Chrome Insert Over fender body colour – – – – – • • Steel wheel 15″ – 15″ – – – – Alloy wheel – 15″ – 15″ 15″ 16″ 16″ Tire size 215/70 R15 215/70 R15 215/70 R15 215/70 R15 215/70 R15 245/70 R16 245/70 R16 Safety Hologen headlights • • • • • • • Safety front windshield • • • • • • • Side beam protector • • • • • • • Skid plate – – – – – • • Sunband – • • • • • • Front dual airbags (driver & passenger) – – – – • • • Seat belt 3 points for driver & passenger • • • • • • • Seat belt 3 points for rear passenger • • • • • • • Adjustable seat belt (height – low) • • • • • • • Rear defogger – • – • • • • ABS, EBD include. G-sensor – • – • • • • Limited slip – – – – – – • Remote control include. Alarm system – – – – • • • Third brake light • • • • • • • Child door lock • • • • • • • Door half latch warning • • • • • • • Key reminder • • • • • • • Head lamp reminder • • • • • • • Selt belt warning • • • • • • • Tools • • • • • • • Immobilizer system  – •  – • • • • Body Colour ZENITH BLUE • • • • • • • STERLING SILVER • • • • • • • IMPERIAL BLOND • • • • • • • FOXFIRE RED • • • • • • • BLACK SAPPHIRE • • • • • • • LIGHT PEWTER • • • • • • •



Technical Data

Chevrolet Colorado S-CAB

Technical Data Single Cab 2.5 GL1 Engine Engine Code 4JK1 – TC Engine Diesel engine 4 in line Commonrail 16v – turbo Direct Injection including Intercooler Cylinder capacities (cc.) 2,499 Bore x Stroke (mm.) 95.4 x 87.4 Compression ratio 18.3:1 Max. Horse Power (Kw(PS)/rpm) 85(116)/3600 Max. Torque (Nm (Kg-m) / rpm) 280(29)/1800 – 2200 Injector Electronic controlled injector Transmission and clutch Transmission Manual Transmission Gear Ratio 1st 4.008 2nd 2.301 3rd 1.427 4th 1.000 5th 0.745 Rev. 3.651 Final gear ratio 3.583 Suspension Front Independent, Double wishbone including Gas absorber Rear Semi elliptical, alloy steel leaf spring including Gas absorber Loading suspension Heavy duty Steering Type Rack and Pinion include. Power steering Brake system Front Ventilated Disc 256 mm. Rear Drum 254 mm. Brake booster  7″ x 8″ Dimension Length (with out rear bumper) (mm.) 5,055 Box length (mm.)  2,310 Width (mm.) 1,720 Height (mm.) 1,635 Wheelbase (mm.) 3,050 Wheelbase front/rear (mm.) 1,460 / 1,460 Ground clearance (mm.) 200 Turning radius (m.) 5.9 Dimension Interior Length passenger compartment – front (mm.) 1,085 Height from seat (mm.) 1,004 Width shoulder level (mm.) 1,450 Width waist level (mm.) 1,325 Distance front & rear seat (mm.) – Slide distance (mm.) 198 Capacities Gross weight (kg.) 2,650 No. passenger 2 Tank capacities (l.) 76



Chevrolet Colorado X-CAB

Technical Data EXTENDED CAB 2WD 2WD 4WD 2.5 LS 2.5 LS1 2.5 LT 3.0 LS 3.0 LT 3.0 LT1 3.0 Z71 3.0 Z71 4X4 Engine Engine Code 4JK1 – TC 4JJ1 – TC Engine Diesel engine 4 in line Commonrail 16v – turbo Direct Injection including Intercooler Cylinder capacities (cc.) 2,499 2,999 Bore x Stroke (mm.) 95.4 x 87.4 95.4 x 104.9 Compression ratio 18.3:1 17.5 : 1 Max. Horse Power (Kw(PS)/rpm) 85(116)/3600 107 (146) / 3,600 Max. Torque (Nm (Kg-m) / rpm) 280(29)/1800 – 2200 294 (30) / 1,400 – 3,400 Injector Electronic controlled injector Transmission and clutch Transmission Manual transmission Manual / Automatic Manual Manual / Automatic Gear Ratio 1st 4.008 4.008 / 2.785 2nd 2.301 2.301 / 1.545 3rd 1.427 1.427 / 1.000 4th 1.000 1.000 / 0.694 5th 0.745 0.828 / – Rev. 3.651 3.651 / 2.272 Final gear ratio 3.583 3.727/3.727 4.300/4.300 Suspension Front Independent, Double wishbone including Gas absorber Independent, Double wishbone including Gas absorber Independent, Double wishbone with stabilzer bar including Gas absorber Rear Semi elliptical, alloy steel leaf spring including Gas absorber Loading suspension Standard Steering Type Rack and Pinion include. Power steering Brake system Front Ventilated Disc 256 mm. Ventilated Disc 256 mm. Ventilated Disc 280 mm. Rear Drum 254 มม. Drum 254 มม. Drum 295 มม. Brake booster  7″ x 8″ Dimension Length (with rear bumper) (mm.) 5,055 / 5,152 Box length (mm.) 1,840 Width (mm.) 1,720 1,720 1,798 Height (mm.) 1,640 1,640 1,755 Wheelbase (mm.) 3,050 Wheelbase front/rear (mm.) 1,460 / 1,460 1,460 / 1,460 1,515/1,520 Ground clearance (mm.) 200 200 225 Turning radius (m.) 5.9 5.9 6.2 Dimension Interior Length passenger compartment – front (mm.) 1,085 Height from seat (mm.) 1,004 Width shoulder level (mm.) 1,450 Width waist level (mm.) 1,325 Distance front & rear seat (mm.) 599 Slide distance (mm.) 198 Capacities Gross weight (kg.) 2,650 2,650 2,750 No. passenger 2 Tank capacities (l.) 76



Chevrolet Colorado C-CAB (Double Cab)

Technical Data CREW CAB 2WD 2WD 4WD 2.5 LS 2.5 LT 3.0 LS 3.0 LT 3.0 LT1 3.0 Z71 3.0 Z71 4X4 Engine Engine Code 4JK1 – TC 4JJ1 – TC Engine Diesel engine 4 in line Commonrail 16v – turbo Direct Injection including Intercooler Cylinder capacities (cc.) 2,499 2,999 Bore x Stroke (mm.) 95.4 x 87.4 95.4 x 104.9 Compression ratio 18.3:1 17.5 : 1 Max. Horse Power (Kw(PS)/rpm) 85(116)/3600 107 (146) / 3,600 Max. Torque (Nm (Kg-m) / rpm) 280(29)/1800 – 2200 294 (30) / 1,400 – 3,400 Injector Electronic controlled injector Transmission and clutch Transmission Manual transmission Manual transmission Manual / Auto Manual transmission Manual / Auto Gear Ratio 1st 4.008 4.008 / 2.785 2nd 2.301 2.301 / 1.545 3rd 1.427 1.427 / 1.000 4th 1.000 1.000 / 0.694 5th 0.745 0.828 / – Rev. 3.651 3.651 / 2.272 Final gear ratio 3.583 3.727/3.727 4.300/4.300 Suspension Front Independent, Double wishbone including Gas absorber Independent, Double wishbone including Gas absorber Independent, Double wishbone with stabilzer bar including Gas absorber Rear Semi elliptical, alloy steel leaf spring including Gas absorber Loading suspension CRS (Comfort-Ride Suspension) Steering Type Rack and Pinion include. Power steering Brake system Front Ventilated Disc 256 mm. Ventilated Disc 256 mm. Ventilated Disc 280 mm. Rear Drum 254 mm. Drum 254 mm. Drum 295 mm. Brake booster 7″ x 8″ Dimension Length (with rear bumper) (mm.) 4,935 / 5,032 Box length (mm.) 1,420 Width (mm.) 1,720 1,720 1,798 Height (mm.) 1,640 1,640 1,755 Wheelbase (mm.) 3,050 Wheelbase front/rear (mm.) 1,460 / 1,460 1,460 / 1,460 1,515/1,520 Ground clearance (mm.) 200 200 225 Turning radius (m.) 5.9 5.9 6.2 Dimension Interior Length passenger compartment – front (mm.) 1,085 Height from seat (mm.) 1,004 Width shoulder level (mm.) 1,450 Width waist level (mm.) 1,325 Distance front & rear seat (mm.) 826 Slide distance (mm.) 198 Capacities Gross weight (kg.) 2,150 2,150 2,200 2,250 No. passenger 5 Tank capacities (l.) 76



Older Specs



Model Crew Cab 4×2 Ext Cab 4×4 (M) General Information Price [Baht] from 457,000 Baht (see below) Layout front-engine / RWD front-engine / awd Drag Coefficient [cd] NA Curb Weight [lb (kg)] 3747 (1703) 3802 (1728) Weight Distribution [%f / r] NA Cargo Space [cu ft.] 36.7 43.9 Overall Length [in. (mm)] 207.0 (5258) Overall Width [in. (mm)] 67.6 (1717) Overall Height [in. (mm)] 67.0 (1702) 66.3 (1684) Wheelbase [in. (mm)] 125.9 (3198) 125.9 (3198) Track Front [in. (mm)] 57.5 (1460) 59.6 (1514) Track Rear [in. (mm)] 57.5 (1460) 57.5 (1460) Steering Rack & Pinion; Power-assisted Turning Radius [ft. (m)] 21.5 (6.6) 20.5 (6.3) Tires front 225/70 R15 235/75 R15 Tires rear 225/70 R15 235/75 R15 Engine Type all-aluminum Inline-5 all-aluminum Inline-4 Valvetrain DOHC 4-valve/cyl.: continuously variable exhaust valve timing Displacement [cc] 3460 2770 Bore & Stroke [mm] 93.0 x 101.6 Compression Ratio 10.0:1 Redline [rpm] 6300 Max. Power [Bhp at rpm] 220 at 5600 175 at 5600 Max. Torque [lb-ft (Nm) at rpm] 225 (305) at 2800 185 (251) at 2800 Bhp/Liter 63.6 63.2 Accommodation Seating Capacity 5-6 4-5 Front Head Room [in. (mm)] 39.3 (998) Front Leg Room [in. (mm)] 42.0 (1067) Rear Head Room [in. (mm)] 37.9 (973) Rear Leg Room [in. (mm)] 34.7 (881) 23.1 (587) Interior Noise Idle in neutral [dBA] NA 70 mph coasting [dBA] NA Gear Ratios 1st 3.06:1 3.75:1 2nd 1.63:1 2.26:1 3rd 1.00:1 1.37:1 4th 0.70:1 1.00:1 5th NA 0.73:1 Final drive 2.39:1 2.49:1 Suspension Front Independent; coil springs, anti-roll bar Rear Live-axle; steel leaf springs Braking Front – Brakes 11.2 in. (285 mm) ventilated discs Rear – Brakes 11.6 in. (295) drums 70 – 0 mph [ft (m)] NA 60 – 0 mph [ft (m)] NA

Colorado Double Cab Features

Features
	CREW CAB
	2WD		2WD				4WD
	2.5 LS	2.5 LT	3.0 LS	3.0 LT	3.0 LT1	3.0 Z71	3.0 Z71 4X4
Interior
Cluster with tachometer	•	Silver trim	•	Silver trim
Control switch at door panel	•	Silver trim	•	Silver trim
Air conditioning with heated glass system	•	•	•	•	•	•	•
Digital mileage	•	•	•	•	•	•	•
Central lock	–	•	–	•	•	•	•
Power window	–	•	–	•	•	•	•
Radio with cassette	•	•	•	•	•	•	•
Speaker	4	6	4	6	6	6	6
Seat and door panel material	Tertis	Kayak	Tertis	Kayak
Power steering with safety collapse system	•	•	•	•	•	•	•
Tilt steering	–	•	–	•	•	•	•
Leather steering wheel and gear knob	–	•	–	•	•	•	•
Intermittent wiper	•	Variable intermittent wiper	•	Variable intermittent wiper
Dome lamp	•	•	•	•	•	•	•
Power outlet	•	•	•	•	•	•	•
Cigarette package	•	•	•	•	•	•	•
Middle console with 2 cupholders	•	•	•	•	•	•	•
Overhead console include. sunglasses pocket/map lamp	–	•	–	•	•	•	•
Exterior
Light indicator at side mirror	–	•	–	•	•	•	•
Front grill	•	•	Body colour	Body colour	Body colour	Chrome Insert	Chrome Insert
Bumper body colour	•	•	•	•	•	•	•
Fog lamp	–	–	–	–	–	•	•
Housing side mirror	Body colour	Body colour	Body colour	Body colour	Chrome Insert	Chrome Insert	Chrome Insert
Electric adjustable side mirrors	–	•	–	•	•	•	•
Door handle	Body colour	Body colour	Body colour	Body colour	Chrome Insert	Chrome Insert	Chrome Insert
Door handle at tailgate	Body colour	Body colour	Body colour	Body colour	Chrome Insert	Chrome Insert	Chrome Insert
Rear bumper	–	สีดำ	–	Black	Chrome Insert	Chrome Insert	Chrome Insert
Over fender body colour	–	–	–	–	–	•	•
Steel wheel	15″	–	15″	–	–	–	–
Alloy wheel	–	15″	–	15″	15″	16″	16″
Tire size	215/70 R15	215/70 R15	215/70 R15	215/70 R15	215/70 R15	245/70 R16	245/70 R16
Safety
Hologen headlights	•	•	•	•	•	•	•
Safety front windshield	•	•	•	•	•	•	•
Side beam protector	•	•	•	•	•	•	•
Skid plate	–	–	–	–	–	•	•
Sunband	–	•	•	•	•	•	•
Front dual airbags (driver & passenger)	–	–	–	–	•	•	•
Seat belt 3 points for driver & passenger	•	•	•	•	•	•	•
Seat belt 3 points for rear passenger	•	•	•	•	•	•	•
Adjustable seat belt (height – low)	•	•	•	•	•	•	•
Rear defogger	–	•	–	•	•	•	•
ABS, EBD include. G-sensor	–	•	–	•	•	•	•
Limited slip	–	–	–	–	–	–	•
Remote control include. Alarm system	–	–	–	–	•	•	•
Third brake light	•	•	•	•	•	•	•
Child door lock	•	•	•	•	•	•	•
Door half latch warning	•	•	•	•	•	•	•
Key reminder	•	•	•	•	•	•	•
Head lamp reminder	•	•	•	•	•	•	•
Selt belt warning	•	•	•	•	•	•	•
Tools	•	•	•	•	•	•	•
Immobilizer system	–	•	–	•	•	•	•
Body Colour
ZENITH BLUE	•	•	•	•	•	•	•
STERLING SILVER	•	•	•	•	•	•	•
IMPERIAL BLOND	•	•	•	•	•	•	•
FOXFIRE RED	•	•	•	•	•	•	•
BLACK SAPPHIRE	•	•	•	•	•	•	•
LIGHT PEWTER	•	•	•	•	•	•	•

Double Cab Technical Data

Features
	CREW CAB
	2WD		2WD				4WD
	2.5 LS	2.5 LT	3.0 LS	3.0 LT	3.0 LT1	3.0 Z71	3.0 Z71 4X4
Interior
Cluster with techometer	•	Silver trim	•	Silver trim
Control switch at door panel	•	Silver trim	•	Silver trim
Airconditioning with heated glass system	•	•	•	•	•	•	•
Digital milage	•	•	•	•	•	•	•
Central lock	–	•	–	•	•	•	•
Power window	–	•	–	•	•	•	•
Radio with cassette	•	•	•	•	•	•	•
Speaker	4	6	4	6	6	6	6
Seat and door panel material	Tertis	Kayak	Tertis	Kayak
Power steering with safety collapse system	•	•	•	•	•	•	•
Tilt steering	–	•	–	•	•	•	•
Leather steering wheel and gear knob	–	•	–	•	•	•	•
Intermittent wiper	•	Variable intermittent wiper	•	Variable intermittent wiper
Dome lamp	•	•	•	•	•	•	•
Power outlet	•	•	•	•	•	•	•
Cigarette package	•	•	•	•	•	•	•
Middle console with 2 cupholders	•	•	•	•	•	•	•
Overhead console include. sunglasses pocket/map lamp	–	•	–	•	•	•	•
Exterior
Light indicator at side mirror	–	•	–	•	•	•	•
Front grill	•	•	Body colour	Body colour	Body colour	Chrome Insert	Chrome Insert
Bumper body colour	•	•	•	•	•	•	•
Fog lamp	–	–	–	–	–	•	•
Housing side mirror	Body colour	Body colour	Body colour	Body colour	Chrome Insert	Chrome Insert	Chrome Insert
Electric adjustable side mirrors	–	•	–	•	•	•	•
Door handle	Body colour	Body colour	Body colour	Body colour	Chrome Insert	Chrome Insert	Chrome Insert
Door handle at tailgate	Body colour	Body colour	Body colour	Body colour	Chrome Insert	Chrome Insert	Chrome Insert
Rear bumper	–	สีดำ	–	Black	Chrome Insert	Chrome Insert	Chrome Insert
Over fender body colour	–	–	–	–	–	•
Steel wheel	15″	–	15″	–	–	–	–
Alloy wheel	–	15″	–	15″	15″	16″	16″
Tire size	215/70 R15	215/70 R15	215/70 R15	215/70 R15	215/70 R15	245/70 R16	245/70 R16
Safety
Hologen headlights	•	•	•	•	•	•	•
Safety front windshield	•	•	•	•	•	•	•
Side beam protector	•	•	•	•	•	•	•
Skid plate	–	–	–	–	–	•	•
Sunband	–	•	•	•	•	•	•
Front dual airbags (driver & passenger)	–	–	–	–	•	•	•
Seat belt 3 points for driver & passenger	•	•	•	•	•	•	•
Seat belt 3 points for rear passenger	•	•	•	•	•	•	•
Adjustable seat belt (height – low)	•	•	•	•	•	•	•
Rear defogger	–	•	–	•	•	•	•
ABS, EBD include. G-sensor	–	•	–	•	•	•	•
Limited slip	–	–	–	–	–	–	•
Remote control include. Alarm system	–	–	–	–	•	•	•
Third brake light	•	•	•	•	•	•	•
Child door lock	•	•	•	•	•	•	•
Door half latch warning	•	•	•	•	•	•	•
Key reminder	•	•	•	•	•	•	•
Head lamp reminder	•	•	•	•	•	•	•
Selt belt warning	•	•	•	•	•	•	•
Tools	•	•	•	•	•	•	•
Immobilizer system	–	•	–	•	•	•	•
Body Colour
ZENITH BLUE	•	•	•	•	•	•	•
STERLING SILVER	•	•	•	•	•	•	•
IMPERIAL BLOND	•	•	•	•	•	•	•
FOXFIRE RED	•	•	•	•	•	•	•
BLACK SAPPHIRE	•	•	•	•	•	•	•
LIGHT PEWTER	•	•	•	•	•	•	•



Colorado Extra Cab Features

Features
	EXTENDED CAB
	2WD			2WD				4WD
	2.5 LS	2.5 LS1	2.5 LT	3.0 LS	3.0 LT	3.0 LT1	3.0 Z71	3.0 Z71 4X4
Interior
Cluster with techometer	•	•	Silver trim			•	Silver trim
Control switch at door panel	–	–	Silver trim			–	Silver trim
Airconditioning with heated glass system	•	•	•	•	•	•	•	•
Digital milage	•	•	•	•	•	•	•	•
Central lock	–	–	•	–	•	•	•	•
Power window	–	–	•	–	•	•	•	•
Radio with cassette	•	•	•	•	•	•	•	•
Speaker	4	4	6	4	6	6	6	6
Seat and door panel material	Tertis		Kayak	Tertis	Kayak
Power steering with safety collapse system	•	•	•	•	•	•	•	•
Tilt steering	–	•	•	–	•	•	•	•
Leather steering wheel and gear knob	–	–	•	–	•	•	•	•
Intermittent wiper	•	•	Variable intermittent wiper	•	Variable intermittent wiper
Dome lamp	•	•	•	•	•	•	•	•
Power outlet	•	•	•	•	•	•	•	•
Cigarette package	•	•	•	•	•	•	•	•
Middle console with 2 cupholders	•	•	•	•	•	•	•	•
Overhead console include. sunglasses pocket/map lamp	–	–	•	–	•	•	•	•
Exterior
Light indicator at side mirror	–	–	•	–	•	•	•	•
Front grill	•	•	•	•	Body colour	With Chrome insert	With Chrome insert	With Chrome insert
Bumper body colour	•	•	•	•	•	•	•	•
Fog lamp	–	–	–	–	–	–	•	•
Housing side mirror	Body colour	Body colour	Body colour	Body colour	Body colour	With Chrome insert	With Chrome insert	With Chrome insert
Electric adjustable side mirrors	–	–	•	–	•	•	•	•
Door handle	Body colour	Body colour	Body colour	Body colour	Body colour	With Chrome insert	With Chrome insert	With Chrome insert
Door handle at tailgate	Body colour	Body colour	Body colour	Body colour	Body colour	With Chrome insert	With Chrome insert	With Chrome insert
Rear bumper	–	–	Black	–	Black	With Chrome insert	With Chrome insert	With Chrome insert
Over fender body colour	–	–	–	–	–	–	•	•
Steel wheel	15″	–	–	15″	–	–	–	–
Alloy wheel	–	15″	15″	–	15″	15″	16″	16″
Tire size	215/70 R15	215/70 R15	215/70 R15	215/70 R15	215/70 R15	215/70 R15	245/70 R16	245/70 R16
Safety
Hologen headlights	•	•	•	•	•	•	•	•
Safety front windshield	•	•	•	•	•	•	•	•
Side beam protector	•	•	•	•	•	•	•	•
Skid plate	–	–	–	–	–	–	•	•
Sunband	–	–	•	–	•	•	•	•
Front dual airbags (driver & passenger)	–	–	–	–	–	•	•	•
Seat belt 3 points for driver & passenger	•	•	•	•	•	•	•	•
Seat belt 3 points for rear passenger	–	–	–	–	–	–	–	–
Adjustable seat belt (height – low)	•	•	•	•	•	•	•	•
Rear defogger	–	–	•	–	•	•	•	•
ABS, EBD include. G-sensor	–	•	•	–	•	•	•	•
Limited slip	–	–	–	–	–	–	–	•
Remote control include. Alarm system	–	–	–	–	–	•	•	•
Third brake light	•	•	•	•	•	•	•	•
Child door lock	–	–	–	–	–	–	–	–
Door half latch warning	•	•	•	•	•	•	•	•
Key reminder	•	•	•	•	•	•	•	•
Head lamp reminder	•	•	•	•	•	•	•	•
Selt belt warning	•	•	•	•	•	•	•	•
Tools	•	•	•	•	•	•	•	•
Immobilizer system	–	–	•	–	•	•	•	•
Body Colour
ZENITH BLUE	•	•	•	•	•	•	•	•
STERLING SILVER	•	•	•	•	•	•	•	•
IMPERIAL BLOND	•	•	•	•	•	•	•	•
FOXFIRE RED	•	•	•	•	•	•	•	•
BLACK SAPPHIRE	•	•	•	•	•	•	•	•
LIGHT PEWTER	•	•	•	•	•	•	•	•

Colorado Extra Cab Technical Data

Technical Data
		EXTENDED CAB
		2WD			2WD				4WD
		2.5 LS	2.5 LS1	2.5 LT	3.0 LS	3.0 LT	3.0 LT1	3.0 Z71	3.0 Z71 4X4
Engine
Engine Code		4JK1 – TC			4JJ1 – TC
Engine		Diesel engine 4 in line Commonrail 16v – turbo Direct Injection including Intercooler
Cylinder capacities (cc.)		2,499			2,999
Bore x Stroke (mm.)		95.4 x 87.4			95.4 x 104.9
Compression ratio		18.3:1			17.5 : 1
Max. Horse Power (Kw(PS)/rpm)		85(116)/3600			107 (146) / 3,600
Max. Torque (Nm (Kg-m) / rpm)		280(29)/1800 – 2200			294 (30) / 1,400 – 3,400
Injector		Electronic controlled injector
Transmission and clutch
Transmission		Manual transmission					Manual / Automatic	Manual	Manual / Automatic
Gear Ratio	1st	4.008			4.008 / 2.785
	2nd	2.301			2.301 / 1.545
	3rd	1.427			1.427 / 1.000
	4th	1.000			1.000 / 0.694
	5th	0.745			0.828 / –
	Rev.	3.651			3.651 / 2.272
Final gear ratio		3.583			3.727/3.727			4.300/4.300
Suspension
Front		Independent, Double wishbone including Gas absorber			Independent, Double wishbone including Gas absorber			Independent, Double wishbone with stabilzer bar including Gas absorber
Rear		Semi elliptical, alloy steel leaf spring including Gas absorber
Loading suspension		Standard
Steering
Type		Rack and Pinion include. Power steering
Brake system
Front		Ventilated Disc 256 mm.			Ventilated Disc 256 mm.			Ventilated Disc 280 mm.
Rear		Drum 254 มม.			Drum 254 มม.			Drum 295 มม.
Brake booster		7″ x 8″
Dimension
Length (with rear bumper) (mm.)		5,055 / 5,152
Box length (mm.)		1,840
Width (mm.)		1,720			1,720			1,798
Height (mm.)		1,640			1,640			1,755
Wheelbase (mm.)		3,050
Wheelbase front/rear (mm.)		1,460 / 1,460			1,460 / 1,460			1,515/1,520
Ground clearance (mm.)		200			200			225
Turning radius (m.)		5.9			5.9			6.2
Dimension Interior
Length passenger compartment – front (mm.)		1,085
Height from seat (mm.)		1,004
Width shoulder level (mm.)		1,450
Width waist level (mm.)		1,325
Distance front & rear seat (mm.)		599
Slide distance (mm.)		198
Capacities
Gross weight (kg.)		2,650			2,650			2,750
No. passenger		2
Tank capacities (l.)		76



Colorado Single Cab Features

Features
	2WD Single Cab 2.5 GL1
Interior
Cluster with techometer	•
Control switch at door panel	–
Airconditioning with heated glass system	•
Digital milage	•
Central lock	–
Power window	–
Radio with cassette	•
Speaker	2
Seat and door panel material	Vinyl
Power steering with safety collapse system	•
Tilt steering	–
Leather steering wheel and gear knob	–
Intermittent wiper	•
Dome lamp	•
Power outlet	–
Cigarette package	•
Middle console with 2 cupholders	•
Overhead console include. sunglasses pocket/map lamp	–
Exterior
Light indicator at side mirror	–
Front grill	•
Bumper body colour	•
Fog lamp	–
Housing side mirror	Black
Electric adjustable side mirrors	–
Door handle	Black
Door handle at tailgate	–
Rear bumper	–
Over fender body colour	–
Steel wheel	15″
Alloy wheel	–
Tire size	215/70 R15
Safety
Hologen headlights	•
Safety front windshield	•
Side beam protector	•
Skid plate	–
Sunband	–
Front dual airbags (driver & passenger)	–
Seat belt 3 points for driver & passenger	•
Seat belt 3 points for rear passenger	–
Adjustable seat belt (height – low)	•
Rear defogger	–
ABS, EBD include. G-sensor	–
Limited slip	–
Remote control include. Alarm system	–
Third brake light	–
Child door lock	–
Door half latch warning	•
Key reminder	–
Head lamp reminder	–
Selt belt warning	•
Tools	•
Immobilizer system	–
Body Colour
ZENITH BLUE	•
STERLING SILVER	•
IMPERIAL BLOND	•
FOXFIRE RED	•
BLACK SAPPHIRE	•
LIGHT PEWTER	•

Colorado Single Cab Technical Data

Technical Data
		Single Cab 2.5 GL1
Engine
Engine Code		4JK1 – TC
Engine		Diesel engine 4 in line Commonrail 16v – turbo Direct Injection including Intercooler
Cylinder capacities (cc.)		2,499
Bore x Stroke (mm.)		95.4 x 87.4
Compression ratio		18.3:1
Max. Horse Power (Kw(PS)/rpm)		85(116)/3600
Max. Torque (Nm (Kg-m) / rpm)		280(29)/1800 – 2200
Injector		Electronic controlled injector
Transmission and clutch
Transmission		Manual Transmission
Gear Ratio	1st	4.008
	2nd	2.301
	3rd	1.427
	4th	1.000
	5th	0.745
	Rev.	3.651
Final gear ratio		3.583
Suspension
Front		Independent, Double wishbone including Gas absorber
Rear		Semi elliptical, alloy steel leaf spring including Gas absorber
Loading suspension		Heavy duty
Steering
Type		Rack and Pinion include. Power steering
Brake system
Front		Ventilated Disc 256 mm.
Rear		Drum 254 mm.
Brake booster		7″ x 8″
Dimension
Length (with out rear bumper) (mm.)		5,055
Box length (mm.)		2,310
Width (mm.)		1,720
Height (mm.)		1,635
Wheelbase (mm.)		3,050
Wheelbase front/rear (mm.)		1,460 / 1,460
Ground clearance (mm.)		200
Turning radius (m.)		5.9
Dimension Interior
Length passenger compartment – front (mm.)		1,085
Height from seat (mm.)		1,004
Width shoulder level (mm.)		1,450
Width waist level (mm.)		1,325
Distance front & rear seat (mm.)		–
Slide distance (mm.)		198
Capacities
Gross weight (kg.)		2,650
No. passenger		2
Tank capacities (l.)		76Che

Colorado Single Cab

Model :	Colorado S Cab Base 2.5L
Engine Type :	4JA1-L Direct Injection Turbo
Engine Capacity :	2499
Style :	Single Cab
Driving System :	2WD
Transmission :	Manual 5 Speed

Colorado Extra Cab LS and LT

Model :	Colorado X Cab LS 2.5L	Colorado X Cab LS1 2.5L	Colorado X Cab LT 3.0L	Colorado X Cab LT 3.0L
Engine Type :	4JA1-L Direct Injection Turbo	4JA1-L Direct Injection Turbo	4JJ1-TC Commonrail Turbo Direct injection	4JJ1-TC Commonrail Turbo Direct injection
Engine Capacity :	2499	2499	2999	2999
Style :	Extra Cab	Extra Cab	Extra Cab	Extra Cab
Driving System :	2WD	2WD	2WD	2WD
Transmission :	Manual 5 Speed	Manual 5 Speed	Manual 5 Speed	Automatic 4 speed

Colorado Extra Cab Z71

Model :	Colorado X Cab Z71 M/T 3.0 L	Colorado X Cab 4×4 Z71 M/T 3.0 L	Colorado X Cab 4×4 Z71 A/T 3.0L
Engine Type :	44JJ1-TC Commonrail Turbo Direct injection	44JJ1-TC Commonrail Turbo Direct injection	4JJ1-TC Commonrail Turbo Direct injection
Engine Capacity :	2999	2999	2999
Style :	Extra Cab	Extra Cab	Extra Cab
Driving System :	2WD	4WD	4WD
Transmission :	Manual 5 Speed	Manual 5 Speed	Automatic 4 Speed

Colorado C Cab

Model :	Colorado C Cab LS 3.0L	Colorado C Cab LT 3.0L	ColoradoC Cab LT1 3.0L A/T
EngineType :	44JJ1-TC Common-rail Turbo Direct injection	44JJ1-TC Common-rail Turbo Direct injection	4JJ1- TC Common-rail Turbo Direct injection
Engine Capa-city :	2999	2999	2999
Style :	Double Cab	Double Cab	Double Cab
Driving Sys-tem :	2WD	2WD	2WD
Trans-mission :	Manual 5 Speed	Manual 5 Speed	Automatic4 Speed



Model :	ColoradoC Cab Z71 M/T 3.0L	ColoradoC Cab Z71 A/T 3.0L	Colorado C Cab 4×4 Z71 M/T 3.0L	Colorado C Cab 4×4 Z71 A/T 3.0L
EngineType :	4JJ1- TC Common-rail Turbo Direct injection	44JJ1- TC Common-rail Turbo Direct injection	44JJ1- TC Common-rail Turbo Direct injection	4JJ1- TC Common-rail Turbo Direct injection
Engine Capa-city :	2999	2999	2999	2999
Style :	Double Cab	Double Cab	Double Cab	Double Cab
Driving Sys-tem :	2WD	2WD	4WD	4WD
Trans-mission :	Manual 5 Speed	Automatic 4 Speed	Manual 5 Speed	Automatic 4 Speed

Fuel Economy

Engine	EPA Estimated MPG city/hwy.
VORTEC 2800 I-4
2WD WITH 5-SPEED MANUAL (REGULAR AND EXTENDED CAB MODELS)	21/27
2WD WITH 5-SPEED MANUAL (CREW CAB MODELS)	21/26
4X4 WITH 5-SPEED MANUAL	19/23
2WD WITH 4-SPEED AUTOMATIC	18/25
4X4 WITH 4-SPEED AUTOMATIC	17/23
VORTEC 3500 I-5
2WD WITH 5-SPEED MANUAL	19/25
4X4 WITH 5-SPEED MANUAL	19/24
2WD WITH 4-SPEED AUTOMATIC (REGULAR AND EXTENDED CAB MODELS)	18/23
4X4 WITH 4-SPEED AUTOMATIC (REGULAR AND EXTENDED CAB MODELS)	18/22
2WD WITH 4-SPEED AUTOMATIC (CREW CAB MODELS)	18/23
4X4 WITH 4-SPEED AUTOMATIC (CREW CAB MODELS)	17/22



Dimensions

NOTE: All dimensions shown are inches/millimeters unless otherwise noted.
Exterior	Regular Cab	Extended Cab	Crew Cab
WHEELBASE	111.3/2826	126.0/3200	126.0/3200
LENGTH	192.4/4886	207.1/5260	207.1/5260
HEIGHT
2WD	64.9/1649	64.9/1649	65.5/1656
4X4	67.6/1718	67.6/1718	67.9/1725
WIDTH	68.6/1742	68.6/1742	68.6/1742
2WD TREAD WIDTH
FRONT	57.5/1460	57.5/1460	57.5/1460
REAR	57.5/1460	57.5/1460	57.5/1460
4X4 TREAD WIDTH
FRONT	59.0/1499	59.0/1499	59.0/1499
REAR	59.2/1504	59.2/1504	59.2/1504
BUMPER TO FRONT AXLE	33.9/861	33.9/861	33.9/861
REAR OVERHANG	47.2/1199	47.2/1199	47.2/1199



Cargo Box	Regular and Extended Cab Box	Crew Cab Box
LENGTH AT FLOOR	72.8 (Reg.), 72.8 (Ext.)/1849	61.1/1552
WIDTH AT FLOOR	57.2/1453	57.2/1453
WIDTH AT FLOOR	57.2/1453	57.2/1453
WIDTH BETWEEN WHEEL HOUSINGS	42.6/1081	42.6/1081
TAILGATE WIDTH	52.4/1331	52.4/1331
INSIDE HEIGHT	18.6/472	18.6/472
CARGO BOX VOLUME1(CU. FT.)	43.9	36.7

1



Cargo and load capacity limited by weight and distribution.



Interior	Regular Cab	Extended Cab	Crew Cab
HEADROOM
FRONT	39.6/1006	39.6/1006	39.6/1006
REAR	—	37.9/972	38.3/973
LEGROOM
FRONT	42.2/1071	42.2/107	42.2/107
REAR	—	23.1/587	34.8/883
SHOULDER ROOM
FRONT	57.1/1450	57.1/1450	57.1/1450
REAR	—	57.2/1453	57.1/1450



Capacities

	Regular Cab	Extended Cab	Crew Cab
SEATING	2/3	4/5	5/6
FUEL TANK, APPROXIMATE (GAL./LITERS)	19/71.9	19/71.9	19/71.9
GVWR, STANDARD (LBS./KG)1
Z85 2WD	4850/2200	5000/2268	5000/2268
Z85 4X4	5150/2336	5300/2404	5300/2404
SPORT 2WD	4400/2000	4600/2091	4600/2091
Z71 2WD	5150/2336	5300/2404	5300/2404
Z71 4X4	5150/2336	5300/2404	5300/2404
PAYLOAD, BASE (LBS./KG)2
Z85 2WD	1547/702	1532/695	1316/597
Z85 4X4	1535/697	1523/691	1338/607
SPORT 2WD	1037/470	1074/487	857/389
Z71 2WD	1743/791	1746/792	1432/650
Z71 4X4	1486/674	1474/669	1190/540
CURB WEIGHTS, ESTIMATED (LBS./KG)
Z85 2WD	3303/1489	3468/1573	3684/1671
Z85 4X4	3615/1640	3777/1713	3972/1797
SPORT 2WD	3363/1525	3526/1599	3843/1743
Z71 2WD	3407/1545	3554/1612	3868/1754
Z71 4X4	3664/1662	3826/1735	4110/1864

1

Gross Vehicle Weight Rating (GVWR). When properly equipped; includes weight of vehicle, driver, passengers, cargo and optional equipment.

2

Maximum payload capacity includes weight of driver, passengers, optional equipment and cargo.



Trailering

Maximum trailer weight ratings (lbs./kg) — Manual Transmission
Engine	Vortec 2800 I-4	Vortec 3500 I-5
Regular Cab
2WD	2400/1088	3800/1724
4X4	2000/907	3500/1588
Extended Cab
2WD	2200/998	3700/1768
4X4	1900/862	3400/1542
Crew Cab 4×4
2WD	2000/907	—
4X4	1700/771	—

Maximum trailer weight ratings (lbs./kg) — Automatic Transmission
Engine	Vortec 2800 2.8L I-4	Vortec 3500 3.5L I-5
Regular Cab
2WD	3400/1542	4000/1814
4X4	3100/1406	4000/1814
Extended Cab
2WD	3200/1451	4000/1814
4X4	2900/1315	4000/1814
Crew Cab
2WD	3100/1406	4000/1814
4X4	2700/1225	4000/1814



Maximum trailer weight ratings are calculated assuming a base vehicle, except for any option(s) necessary to achieve the rating, plus driver. The weight of other optional equipment, passengers and cargo will reduce the maximum trailer weight your vehicle can tow.



NOTE: Trailer tongue weight should be 10 to 15 percent of total loaded trailer weight up to 500 lbs.

NOTE: For recreational towing restrictions and availability, consult the Owner’s Manual.



Braking

	U.S. Standard	Metric
FRONT
ROTOR SIZE (DIAM. X THICK.)	11.0 x 1.1 in.	280 x 27mm
SWEPT AREA	105.7 sq. in.	681.7 sq. cm
REAR
DRUM SIZE (DIAM. X WIDTH)	11.6 x 1.8 in.	295 x 45mm
SWEPT AREA	64.6 sq. in.	417 sq. cm

Engine

Engine	Vortec 2800 I-4	Vortec 3500 I-5
DISPLACEMENT (CU. IN./LITERS)	169/2.8	211/3.5
BORE & STROKE (IN./MM)	3.66 x 4.0/91.4 x 101.6	3.66 x 4.0/91.4 x 101.6
COMPRESSION RATIO	10.0:1	10.0:1
CYLINDER BLOCK MATERIAL	aluminum	aluminum
CYLINDER HEAD MATERIAL	aluminum	aluminum
VALVE CONFIGURATION	DOHC	DOHC
VALVES/CYLINDER	4	4
IGNITION SYSTEM	coil-on-plug	coil-on-plug
LIFTERS	hydraulic roller	hydraulic roller
CAM DRIVE	chain	chain
COOLANT CAPACITY (QUARTS/LITERS)
MANUAL TRANSMISSION	9.5/9	9.5/9
AUTOMATIC TRANSMISSION	9.5/9	9.5/9
OIL CAPACITY (QUARTS/LITERS)	4.5/4.3	4.5/4.3
ALTERNATOR RATING (AMPS)	100	100
BATTERY (SAE RATING, CCA)	690	690
RECOMMENDED UNLEADED FUEL	87 octane	87 octane
MAXIMUM ENGINE SPEED (RPM)	5600	5600
HORSEPOWER/KW (@ ENGINE RPM)	175/130.5 @ 5600	220/164.1 @ 5600
TORQUE (LB.-FT./N-M @ RPM)	185/250 @ 2800	225/305 @ 2800

Steering

	Ratio
2WD	18.1:1 (on center)
4X4	19.1:1 (on center)
TURNING DIAMETER CURB-TO-CURB (FT./M)	Regular Cab models: 40/12.2 (approx.); Extended and Crew Cab models: 44.6/13.6 (approx.)

Transmission

	Manual 5-speed w/overdrive	Automatic 4-speed w/overdrive
FIRST GEAR	3.75	3.05
SECOND GEAR	2.26	1.62
THIRD GEAR	1.37	1.00
FOURTH GEAR	1.00	0.69
FIFTH GEAR	0.73	—
REVERSE	3.67	2.29
CASE MATERIAL	die-cast aluminum	die-cast aluminum



Engines & Power
Four- Wheel Drive Trims	Z85 4WD	LS Z85 4WD	Z71 4WD	Z85 Ext. Cab 4WD	LS Z71 4WD	LS Z85 Ext. Cab 4WD	Z71 Ext. Cab 4WD	Z85 Crew Cab 4WD
Standard Engine	2.8L 175 hp I4	2.8L 175 hp I4	2.8L 175 hp I4	2.8L 175 hp I4	2.8L 175 hp I4	2.8L 175 hp I4	2.8L 175 hp I4	2.8L 175 hp I4
Horse-power	175 @ 5600 RPM	175 @ 5600 RPM	175 @ 5600 RPM	175 @ 5600 RPM	175 @ 5600 RPM	175 @ 5600 RPM	175 @ 5600 RPM	175 @ 5600 RPM
Torque (lb-ft)	185 @ 2800 RPM	185 @ 2800 RPM	185 @ 2800 RPM	185 @ 2800 RPM	185 @ 2800 RPM	185 @ 2800 RPM	185 @ 2800 RPM	185 @ 2800 RPM
Rear-Wheel Drive Trims	Z85 2WD	LS Z85 2WD	ZQ8 2WD	Z71 2WD	Z85 Ext. Cab 2WD	LS ZQ8 2WD	LS Z71 2WD	ZQ8 Ext. Cab 2WD
Standard Engine	2.8L 175 hp I4	2.8L 175 hp I4	2.8L 175 hp I4	2.8L 175 hp I4	2.8L 175 hp I4	2.8L 175 hp I4	2.8L 175 hp I4	2.8L 175 hp I4
Horsepower	175 @ 5600 RPM	175 @ 5600 RPM	175 @ 5600 RPM	175 @ 5600 RPM	175 @ 5600 RPM	175 @ 5600 RPM	175 @ 5600 RPM	175 @ 5600 RPM
Torque (lb-ft)	185 @ 2800 RPM	185 @ 2800 RPM	185 @ 2800 RPM	185 @ 2800 RPM	185 @ 2800 RPM	185 @ 2800 RPM	185 @ 2800 RPM	185 @ 2800 RPM
Transmissions
Four-Wheel Drive Trims	Z85 4WD	LS Z85 4WD	Z71 4WD	Z85 Ext. Cab 4WD	LS Z71 4WD	LS Z85 Ext. Cab 4WD	Z71 Ext. Cab 4WD	Z85 Crew Cab 4WD
4-Speed Automatic Overdrive	Opt.	Opt.	Opt.	Opt.	Opt.	Opt.	Opt.	Opt.
5-Speed Manual Overdrive	Std.	Std.	Std.	Std.	Std.	Std.	Std.	Std.
Rear-Wheel Drive Trims	Z85 2WD	LS Z85 2WD	ZQ8 2WD	Z71 2WD	Z85 Ext. Cab 2WD	LS ZQ8 2WD	LS Z71 2WD	ZQ8 Ext. Cab 2WD
4-Speed Automatic Overdrive	Opt.	Opt.	Opt.	Opt.	Opt.	Opt.	Opt.	Opt.
5-Speed Manual Overdrive	Std.	Std.	Std.	Std.	Std.	Std.	Std.	Std.
Fuel Economy
Four-Wheel Drive Trims	Z85 4WD	LS Z85 4WD	Z71 4WD	Z85 Ext. Cab 4WD	LS Z71 4WD	LS Z85 Ext. Cab 4WD	Z71 Ext. Cab 4WD	Z85 Crew Cab 4WD
City (mpg)	18	18	18	18	18	18	18	17
Highway (mpg)	23	23	23	23	23	23	23	22
Rear-Wheel Drive Trims	Z85 2WD	LS Z85 2WD	ZQ8 2WD	Z71 2WD	Z85 Ext. Cab 2WD	LS ZQ8 2WD	LS Z71 2WD	ZQ8 Ext. Cab 2WD
City (mpg)	19	19	19	19	19	19	19	19
Highway (mpg)	24	24	24	24	24	24	24	24
Comfort & Convenience
Four-Wheel Drive Trims	Z85 4WD	LS Z85 4WD	Z71 4WD	Z85 Ext. Cab 4WD	LS Z71 4WD	LS Z85 Ext. Cab 4WD	Z71 Ext. Cab 4WD	Z85 Crew Cab 4WD
Sunroof	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
Air Conditioning	Std.	Std.	Std.	Std.	Std.	Std.	Std.	Std.
Power Windows	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
Power Door Locks	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
Leather Seats	N/A	N/A	N/A	N/A	N/A	N/A	N/A	Opt.
Power Seats	N/A	N/A	N/A	N/A	N/A	N/A	N/A	Opt.
Max. Seating	3	3	3	5	3	5	5	6
Rear-Wheel Drive Trims	Z85 2WD	LS Z85 2WD	ZQ8 2WD	Z71 2WD	Z85 Ext. Cab 2WD	LS ZQ8 2WD	LS Z71 2WD	ZQ8 Ext. Cab 2WD
Sunroof	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
Air Conditioning	Std.	Std.	Std.	Std.	Std.	Std.	Std.	Std.
Power Windows	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
Power Door Locks	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
Leather Seats	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
Power Seats	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
Max. Seating	3	3	3	3	5	2	3	5
Entertainment
Four-Wheel Drive Trims	Z85 4WD	LS Z85 4WD	Z71 4WD	Z85 Ext. Cab 4WD	LS Z71 4WD	LS Z85 Ext. Cab 4WD	Z71 Ext. Cab 4WD	Z85 Crew Cab 4WD
Cassette Player	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
CD Player	Opt.	Std.	Opt.	Opt.	Std.	Std.	Opt.	Std.
Nav. System	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
Rear-Wheel Drive Trims	Z85 2WD	LS Z85 2WD	ZQ8 2WD	Z71 2WD	Z85 Ext. Cab 2WD	LS ZQ8 2WD	LS Z71 2WD	ZQ8 Ext. Cab 2WD
Cassette Player	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
CD Player	Opt.	Std.	Opt.	Opt.	Opt.	Std.	Std.	Opt.
Nav. System	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
Safety
Four-Wheel Drive Trims	Z85 4WD	LS Z85 4WD	Z71 4WD	Z85 Ext. Cab 4WD	LS Z71 4WD	LS Z85 Ext. Cab 4WD	Z71 Ext. Cab 4WD	Z85 Crew Cab 4WD
Airbags	Driver Side	Driver Side	Driver Side	Driver Side	Driver Side	Driver Side	Driver Side	Driver Side
ABS Brakes	Std.	Std.	Std.	Std.	Std.	Std.	Std.	Std.
Traction Control	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
Stability Control	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
Rear-Wheel Drive Trims	Z85 2WD	LS Z85 2WD	ZQ8 2WD	Z71 2WD	Z85 Ext. Cab 2WD	LS ZQ8 2WD	LS Z71 2WD	ZQ8 Ext. Cab 2WD
Airbags	Driver Side	Driver Side	Driver Side	Driver Side	Driver Side	Driver Side	Driver Side	Driver Side
ABS Brakes	Std.	Std.	Std.	Std.	Std.	Std.	Std.	Std.
Traction Control	Opt.	Opt.	Opt.	Opt.	Opt.	Opt.	Std.	Opt.
Stability Control	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
Final Assembly
Four-Wheel Drive Trims	Z85 4WD	LS Z85 4WD	Z71 4WD	Z85 Ext. Cab 4WD	LS Z71 4WD	LS Z85 Ext. Cab 4WD	Z71 Ext. Cab 4WD	Z85 Crew Cab 4WD
Rear-Wheel Drive Trims	Z85 2WD	LS Z85 2WD	ZQ8 2WD	Z71 2WD	Z85 Ext. Cab 2WD	LS ZQ8 2WD	LS Z71 2WD	ZQ8 Ext. Cab 2WD



Engines & Power
Four- Wheel Drive Trims	LS Z71 Ext. Cab 4WD	LS Z85 Crew Cab 4WD	Z71 Crew Cab 4WD	LS Z71 Crew Cab 4WD
Standard Engine	2.8L 175 hp I4	2.8L 175 hp I4	3.5L 220 hp I5	3.5L 220 hp I5
Horse-power	175 @ 5600 RPM	175 @ 5600 RPM	220 @ 5600 RPM	220 @ 5600 RPM
Torque (lb-ft)	185 @ 2800 RPM	185 @ 2800 RPM	225 @ 2800 RPM	225 @ 2800 RPM
Rear-Wheel Drive Trims	LS Z85 Ext. Cab 2WD	Z71 Ext. Cab 2WD	Z85 Crew Cab 2WD	LS ZQ8 Ext. Cab 2WD	LS Z71 Ext. Cab 2WD	LS Z85 Crew Cab 2WD	ZQ8 Crew Cab 2WD	Z71 Crew Cab 2WD	LS ZQ8 Crew Cab 2WD	LS Z71 Crew Cab 2WD
Standard Engine	2.8L 175 hp I4	2.8L 175 hp I4	2.8L 175 hp I4	2.8L 175 hp I4	2.8L 175 hp I4	2.8L 175 hp I4	3.5L 220 hp I5	3.5L 220 hp I5	3.5L 220 hp I5	3.5L 220 hp I5
Horsepower	175 @ 5600 RPM	175 @ 5600 RPM	175 @ 5600 RPM	175 @ 5600 RPM	175 @ 5600 RPM	175 @ 5600 RPM	220 @ 5600 RPM	220 @ 5600 RPM	220 @ 5600 RPM	220 @ 5600 RPM
Torque (lb-ft)	185 @ 2800 RPM	185 @ 2800 RPM	185 @ 2800 RPM	185 @ 2800 RPM	185 @ 2800 RPM	185 @ 2800 RPM	225 @ 2800 RPM	225 @ 2800 RPM	225 @ 2800 RPM	225 @ 2800 RPM
Transmissions
Four-Wheel Drive Trims	LS Z71 Ext. Cab 4WD	LS Z85 Crew Cab 4WD	Z71 Crew Cab 4WD	LS Z71 Crew Cab 4WD
4-Speed Automatic Overdrive	Opt.	Opt.	Std.	Std.
5-Speed Manual Overdrive	Std.	Std.	N/A	N/A
Rear-Wheel Drive Trims	LS Z85 Ext. Cab 2WD	Z71 Ext. Cab 2WD	Z85 Crew Cab 2WD	LS ZQ8 Ext. Cab 2WD	LS Z71 Ext. Cab 2WD	LS Z85 Crew Cab 2WD	ZQ8 Crew Cab 2WD	Z71 Crew Cab 2WD	LS ZQ8 Crew Cab 2WD	LS Z71 Crew Cab 2WD
4-Speed Automatic Overdrive	Opt.	Opt.	Opt.	Opt.	Opt.	Opt.	Std.	Std.	Std.	Std.
5-Speed Manual Overdrive	Std.	Std.	Std.	Std.	Std.	Std.	N/A	N/A	N/A	N/A
Fuel Economy
Four-Wheel Drive Trims	LS Z71 Ext. Cab 4WD	LS Z85 Crew Cab 4WD	Z71 Crew Cab 4WD	LS Z71 Crew Cab 4WD
City (mpg)	18	17	17	17
Highway (mpg)	23	22	22	22
Rear-Wheel Drive Trims	LS Z85 Ext. Cab 2WD	Z71 Ext. Cab 2WD	Z85 Crew Cab 2WD	LS ZQ8 Ext. Cab 2WD	LS Z71 Ext. Cab 2WD	LS Z85 Crew Cab 2WD	ZQ8 Crew Cab 2WD	Z71 Crew Cab 2WD	LS ZQ8 Crew Cab 2WD	LS Z71 Crew Cab 2WD
City (mpg)	19	19	19	19	19	19	19	19	19	19
Highway (mpg)	24	24	24	24	24	24	24	24	24	24
Comfort & Convenience
Four-Wheel Drive Trims	LS Z71 Ext. Cab 4WD	LS Z85 Crew Cab 4WD	Z71 Crew Cab 4WD	LS Z71 Crew Cab 4WD
Sunroof	N/A	N/A	N/A	N/A
Air Conditioning	Std.	Std.	Std.	Std.
Power Windows	N/A	Std.	N/A	Std.
Power Door Locks	N/A	Std.	N/A	Std.
Leather Seats	N/A	Opt.	Opt.	Opt.
Power Seats	N/A	Opt.	Opt.	Opt.
Max. Seating	5	6	6	5
Rear-Wheel Drive Trims	LS Z85 Ext. Cab 2WD	Z71 Ext. Cab 2WD	Z85 Crew Cab 2WD	LS ZQ8 Ext. Cab 2WD	LS Z71 Ext. Cab 2WD	LS Z85 Crew Cab 2WD	ZQ8 Crew Cab 2WD	Z71 Crew Cab 2WD	LS ZQ8 Crew Cab 2WD	LS Z71 Crew Cab 2WD
Sunroof	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
Air Conditioning	Std.	Std.	Std.	Std.	Std.	Std.	Std.	Std.	Std.	Std.
Power Windows	N/A	N/A	N/A	N/A	N/A	Std.	N/A	N/A	Std.	Std.
Power Door Locks	N/A	N/A	N/A	N/A	N/A	Std.	N/A	N/A	Std.	Std.
Leather Seats	N/A	N/A	Opt.	N/A	N/A	Opt.	Opt.	Opt.	Opt.	Opt.
Power Seats	N/A	N/A	Opt.	N/A	N/A	Opt.	Opt.	Opt.	Opt.	Opt.
Max. Seating	5	5	6	4	5	6	5	6	5	5
Entertainment
Four-Wheel Drive Trims	LS Z71 Ext. Cab 4WD	LS Z85 Crew Cab 4WD	Z71 Crew Cab 4WD	LS Z71 Crew Cab 4WD
Cassette Player	N/A	N/A	N/A	N/A
CD Player	Std.	Std.	Std.	Std.
Nav. System	N/A	N/A	N/A	N/A
Rear-Wheel Drive Trims	LS Z85 Ext. Cab 2WD	Z71 Ext. Cab 2WD	Z85 Crew Cab 2WD	LS ZQ8 Ext. Cab 2WD	LS Z71 Ext. Cab 2WD	LS Z85 Crew Cab 2WD	ZQ8 Crew Cab 2WD	Z71 Crew Cab 2WD	LS ZQ8 Crew Cab 2WD	LS Z71 Crew Cab 2WD
Cassette Player	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
CD Player	Std.	Opt.	Std.	Std.	Std.	Std.	Std.	Std.	Std.	Std.
Nav. System	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
Safety
Four-Wheel Drive Trims	LS Z71 Ext. Cab 4WD	LS Z85 Crew Cab 4WD	Z71 Crew Cab 4WD	LS Z71 Crew Cab 4WD
Airbags	Driver Side	Driver Side	Driver Side	Driver Side
ABS Brakes	Std.	Std.	Std.	Std.
Traction Control	N/A	N/A	N/A	N/A
Stability Control	N/A	N/A	N/A	N/A
Rear-Wheel Drive Trims	LS Z85 Ext. Cab 2WD	Z71 Ext. Cab 2WD	Z85 Crew Cab 2WD	LS ZQ8 Ext. Cab 2WD	LS Z71 Ext. Cab 2WD	LS Z85 Crew Cab 2WD	ZQ8 Crew Cab 2WD	Z71 Crew Cab 2WD	LS ZQ8 Crew Cab 2WD	LS Z71 Crew Cab 2WD
Airbags	Driver Side	Driver Side	Driver Side	Driver Side	Driver Side	Driver Side	Driver Side	Driver Side	Driver Side	Driver Side
ABS Brakes	Std.	Std.	Std.	Std.	Std.	Std.	Std.	Std.	Std.	Std.
Traction Control	Opt.	Opt.	Opt.	Opt.	Std.	Std.	Opt.	Std.	Std.	Std.
Stability Control	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
Final Assembly
Four-Wheel Drive Trims	LS Z71 Ext. Cab 4WD	LS Z85 Crew Cab 4WD	Z71 Crew Cab 4WD	LS Z71 Crew Cab 4WD
Rear-Wheel Drive Trims	LS Z85 Ext. Cab 2WD	Z71 Ext. Cab 2WD	Z85 Crew Cab 2WD	LS ZQ8 Ext. Cab 2WD	LS Z71 Ext. Cab 2WD	LS Z85 Crew Cab 2WD	ZQ8 Crew Cab 2WD	Z71 Crew Cab 2WD	LS ZQ8 Crew Cab 2WD	LS Z71 Crew Cab 2WD

Performance
	0 – 60 Time (seconds)	1/4 Mile Time (seconds)	1/4 Mile Speed (mph)	Braking 60 – 0 mph (ft.)
Chevrolet Colorado LS Crew Cab 4wd – I5 3.5L (220 hp) 4A + ABS	8.50	16.50	87.40	150
Chevrolet Colorado LS Crew Cab 4wd – I5 3.5L (220 hp) 4A + ABS	10.03	17.53	82.50	156
